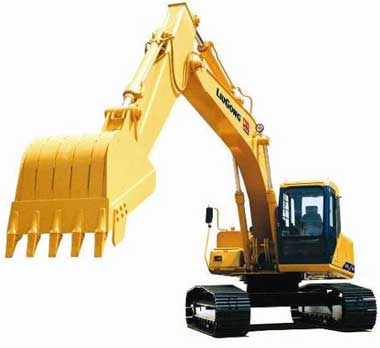

| CLG205C |
| Engine |
|
| Model |
Cummins BT5.9-C |
| Type |
Water-cooled, 4-stroke cycle, direction,turbocharged diesel engine |
| Number of cylinders |
6 |
| Bore x stroke |
102 x 120mm |
| Displacement |
5.9L |
| Rated power |
108kw2100rpm |
| Maximum net torque |
597N.m/1600r/min |
| Fuel consumption |
|
| Hydraulic system |
|
| Main pumps |
Two variable diplacement piston pumps |
| Maximum flow |
2 x 207L/min |
| Pilot pump |
Gear pump |
| Maximum flow |
|
| Relief valve setting |
|
| Implement circuits |
29.4Mpa |
| Travel circuit |
29.4Mpa |
| Swing circuit |
25.5Mpa |
| Pilot circuit |
3.9Mpa |
| Cylinders/No. of cylinders |
|
| Boom/2 |
2-125mmX1187mm |
| Arm/1 |
1-140mmX1450mm |
| Bucket/1 |
1-125mmX1058mm |
| Drives & Brakes |
|
| Steering control |
Two levers with pedals |
| Drive method |
Hydrostatic |
| Maximum drawbar pull |
|
| Gradeability |
35o |
| travel speed |
|
| High |
|
| Low |
|
| Service brake |
|
| Parking brake |
|
| Swing system |
|
| Drive method |
high torque piston motor and two stage planetary reduction gear drives |
| Service brake |
brake is spring-set hydraulic released |
| holding brake/swing lock |
|
| swing speed |
11.3r/min |
| Undercarriage |
|
| Number of shoes |
|
| Width of track shoes |
600mm/800mm |
| Number of carrier rollers |
|
| Number of track rollers |
|
| Coolant & Lubricant Capacity (refilling) |
|
| Fuel tank |
|
| Engine Coolant |
|
| Engine Oil |
|
| Final drive, each side |
|
| Swing drive |
|
| Hydraulic tank |
|
| ?? |
|
| Maximum bucket digging force |
115kN |
| Maximum stick digging force |
88kN |
| Bucket capacity |
0.8m3 |
| Operating weight |
19800kg |
| Ground pressure |
|
| Dimensions |
|
| Arm length |
2910mm |
| Boom length |
5680mm |
| Maximum loading height |
6750mm |
| Maximum cutting height |
9500mm |
| Maximun digging depth |
6200mm |
| Maximum reach |
9820mm |
| Minimum turnting radius |
3530mm |
| Maximum vertical digging depth |
6350mm |
| Overall length |
9520mm |
| Overall width |
2950mm |
| Overall height |
2890mm |
