Product Details:
Place of Origin            Zhejiang, China (Mainland)
Brand Name               ican
Model Number            CFY-150

Detailed Product Desion

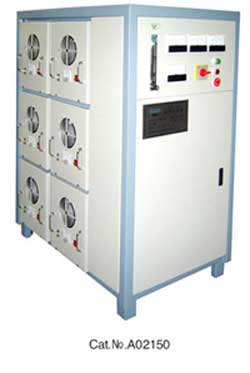

CFY-150 ozone disinfection technical parameter:
generation capacity: 150g/h
gas source: oxygen
power supply: 380V/50HZ
power; 2000W
net weight: 255kg
size; 650*1020*1360
The air pressure of ozone input: 0.1-0.5MPa (Build-in decompression Valve)
The air pressure of ozone output: 0.1MPa
Ozone concentration: ≥60mg/L
The interface of ozone outlet: Rc1/2 (Imperial inside screw)
Temperature: 5-35
Humidity: ≤
Rate input flow: 1520L/g
Introduction: CFY-150 ozone disinfection takes oxygen as gas source (Need to additionally match air compressor and cold & dry machine and oxygen generator), and make structure of drawer with building block type. Every drawer is a generating unit with driven by high-frequency & voltage power module, and plate-style ozone generating fitting with air-cooling. Standardized generating unit, rated capacity is 25 glam, which could be interchanged, and could be started-up & be closed separately Gross ozone generating capacity could be adjusted by change the total number of units, high generating efficiency, high reliability, high ozone concentration.
Ozone generator main application field:
1.                  Disinfect and sterilize purified water, mineral water, beverage (material water), treat medium water and waste water.
2.                  Disinfect and sterilize aseptic workshop with the outside centralizing method.
3.                  Produce high concentrated ozone water, rinse and spray raw materials and accessorial material, clean vegetable and fruits, to reach the purpose of disinfecting and sterilizing the surface.
4.                  Produce high concentrated ozone water, disinfect and sterilize pipeline and utensils.
5.                  Fade the high-level oxidation technology of chemical and industrial system.
Our main products:

 1.  CFY series (oxygen source) ozone generator: CFY-3,6,12,24,50,100,150,225,300,500.
2.  CFZY series (air source) ozone generator: CFZY-3,6,12,24,50,100,150,225,300,500.
3.  CHYS series ozone water treatment machine (Integrate ozone generator, tube mixer and water pump into one): CHYS-B, CHYS-C, CHYS-D.
4.  GH series tube mixer: CH-1,2,3,4,5......30..
5.  TH series mixing tower: TH-1,2,3,4,5....20...
If you have other requirements, we also can costomize for you.
