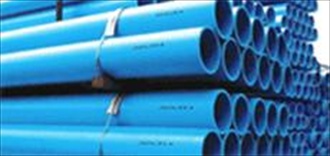

uPVC PRESSURE PIPES

uPVC pressure pipes application for water supply or industrial use with pressure rating from 6 bar to 40 bar. Generally standard colour is grey can be made other colour e.g. blue if client's request. This product complied with standard of MS628 part 1 (BS3505). uPVC pipe for water supply & MS762 (BS3506) uPVC pipe for industrial use.

This pressure pipe are specified by 3 categories:
1. Nominal sizes

uPVC pressure pipes are specified the nominal diameter in millimeter unit, and the measurement actually base on out-side diameter of pipes. These products ranges are from size of 15mm to 300mm and now we will developing until size 400mm.

2. Class of pipes

Classifications of pipes are according with the maximum working pressure in unit MPa.
3. Type of joint

uPVC pipe is provided two types of joint pressure pipe as below:

• Bell-mouth joint

• Solvent cement joint

Dimension

Pipes supplied in standard length 6m or may be other lengths can be made to meet the customer request.
